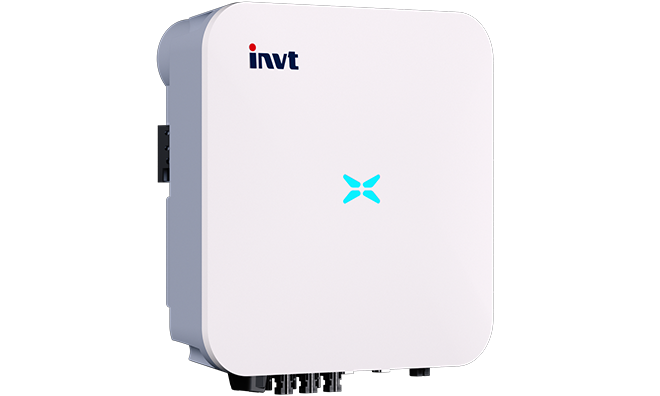

Single Phase On-Grid Solar Inverter

The XG3KTL-2M complies with various international standards, ensuring its suitability for a wide range of applications. The inverter’s robust design and advanced features make it an excellent choice for homeowners looking to maximize their solar energy production while minimizing maintenance and operational concerns.

XG3KTL-2M Single Phase On-Grid Solar Inverter by INVT represents a comprehensive solution for efficient, intelligent, and reliable solar energy conversion. Its advanced features, such as dual MPP trackers, high input current compatibility, smart diagnostic functions, and robust protection mechanisms, make it an ideal choice for residential solar installations. By maximizing energy yields and simplifying maintenance, the XG3KTL-2M ensures optimal performance and higher revenue for solar power system owners. This innovative inverter exemplifies INVT’s commitment to advancing renewable energy technology and providing top-quality solutions for the modern energy landscape.

Input (DC)

• Max. Input Voltage 600V
• Start Voltage 80V
• Rated Input Voltage 360V
• MPPT Voltage Range 50V ~ 550V
• Number of MPP Trackers 2

Output (AC)　

• Rated Grid Frequency 50Hz / 60Hz
• Rated Grid Voltage 220Vac / 230Vac / 240Vac
• Power Factor >0.99 (0.8 leading~0.8 lagging)
• THDi <3% (Rated Power)

Efficiency　

• MPPT Efficiency 99.90%

Protection　

• DC switch Optional
• DC reverse polarity protection Yes
• Anti-islanding protection Yes
• AC short circuit protection Yes
• Residual current monitoring unit Yes
• Insulation resistance monitoring Yes
• Ground fault monitoring Yes
• Grid monitoring Yes
• PV string monitoring Yes
• Surge protection Yes
• AFCI protection Optional

Communication　

• Display LCD / LED+APP
• Communication RS485 / WiFi / 4G

Standard Compliance

• Certification IEC/EN 62109-1/2, IEC/EN 61000-6-1/3, EN50549, IEC61727/IEC62116, CEI0-21, C10/C11, G98/G99, RD244, UNE217001, UNE217002, TOR Erzeuger, AS4777, ABNT, NB/T 32004

General Data　

• Dimensions (W x H x D) 380 x 380 x 160 mm
• Weight 13kg
• Operating Temperature Range -30°C ~ +60°C
• Protection Degree IP66
• Max. Operating Altitude 4000m
• Relative Humidity 0 ~ 100%
• Topology Transformerless
• Night Power Consumption <1W

• a：For AS4777, Rated Output Power of XG5KTL-S is 4999W.
• b：For VDE-AR-N 4105, Max. Output Power of XG4.6KTL-S is 4600VA. For AS4777, Max.Output Power of XG4.6KTL-S is 4999VA.
• c：For AS4777, Max. Output Power of XG5KTL-S is 4999VA.
• d：For AS4777, Max. Output Current of XG4.6KTL-S and XG5KTL-S is 21.7A.

Unveiling the XG3KTL-2M Single Phase On-Grid Solar Inverter by INVT

In the evolving landscape of renewable energy, on-grid solar inverters play a pivotal role in transforming solar power into usable electricity for homes and businesses. One outstanding product in this domain is the XG3KTL-2M Single Phase On-Grid Solar Inverter by INVT. Specifically crafted for residential users, this inverter stands out due to its compact size, light weight, easy installation, and maintenance, combined with exceptional cost performance. Let’s delve into the features and benefits that make the XG3KTL-2M a top choice for residential solar energy systems.

Maximizing Efficiency for Higher Revenue

The XG3KTL-2M Single Phase On-Grid Solar Inverter is designed to deliver unparalleled efficiency, which is crucial for optimizing the return on investment in solar power systems. One of its standout features is the incorporation of 2 Maximum Power Point (MPP) trackers. These trackers ensure that the inverter can extract the maximum possible energy from the solar panels under varying conditions, thereby enhancing overall system efficiency.

Additionally, the inverter supports 150% DC input oversizing, allowing it to accept more solar energy input than its nominal capacity. This capability is particularly beneficial during periods of lower sunlight, ensuring continuous and efficient energy conversion. The maximum input current per string of 20A further enhances its compatibility with high-power solar modules, providing flexibility in system design and the integration of the latest high-efficiency panels.

Intelligent Features for Simplified Operation and Maintenance

The XG3KTL-2M Single Phase On-Grid Solar Inverter is equipped with several intelligent features that simplify both operation and maintenance. A notable feature is the Smart I-V Curve Diagnosis Function. This advanced diagnostic tool can accurately identify faults within the PV string, enabling quick and efficient troubleshooting without the need for extensive manual inspections. This functionality ensures that any issues are promptly addressed, maintaining optimal system performance.

Another significant feature is Intelligent Fault Detection, which involves real-time recording and analysis of AC-side voltage and current waveforms. This capability allows for rapid identification and location of faults, ensuring swift resolution and minimizing system downtime.

To further enhance convenience, the XG3KTL-2M supports multiple communication options, including RS485, WiFi, and 4G. These options facilitate remote monitoring and control of the solar power system via PCs or mobile devices. This remote capability not only increases user convenience but also improves overall system efficiency by enabling proactive maintenance and quick response to any detected issues.

Reliable and Worry-Free Operation

Reliability is a cornerstone of the XG3KTL-2M Single Phase On-Grid Solar Inverter. Designed to withstand harsh environmental conditions, this inverter features an IP66 protection degree, making it suitable for outdoor installations. This high level of protection ensures resistance against dust and water ingress, contributing to the inverter’s durability and long-term performance.

An optional but highly valuable feature of the XG3KTL-2M is the Arc Fault Circuit Interrupter (AFCI) function. This safety feature is designed to detect arc faults, which are dangerous discharges of electricity that can potentially cause fires. When an arc fault is detected, the inverter immediately stops operation, providing an essential layer of safety and preventing potential hazards.

Technical Specifications and Compliance

The XG3KTL-2M complies with various international standards, ensuring its suitability for a wide range of applications. For instance, under the AS4777 standard, the rated output power of the XG5KTL-S is 4999W. Additionally, the maximum output current for the XG5KTL-S under the AS4777 standard is 21.7A, highlighting its robust performance capabilities.

The XG3KTL-2M Single Phase On-Grid Solar Inverter by INVT represents a comprehensive solution for efficient, intelligent, and reliable solar energy conversion. Its advanced features, such as dual MPP trackers, high input current compatibility, smart diagnostic functions, and robust protection mechanisms, make it an ideal choice for residential solar installations. By maximizing energy yields and simplifying maintenance, the XG3KTL-2M ensures optimal performance and higher revenue for solar power system owners. This innovative inverter exemplifies INVT’s commitment to advancing renewable energy technology and providing top-quality solutions for the modern energy landscape.
