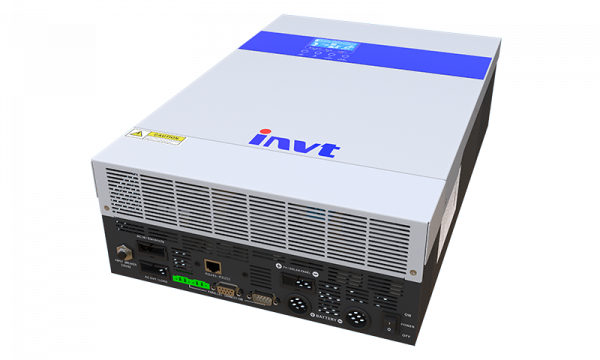

Single Phase Off-Grid Solar Inverter
XN5548-P single-phase off-grid solar inverter is a versatile and reliable solution for various off-grid applications. Its advanced features, such as the built-in 110A MPPT solar charge controller, wide PV input voltage range, intelligent battery management, and support for parallel operation, make it an excellent choice for ensuring efficient and dependable power supply. Whether you are in a remote area, managing a scenic spot, or setting up a communication base station, the XN5548-P provides the performance and reliability you need to keep your operations running smoothly.
Additional Features
- LED Display: The inverter is equipped with a user-friendly LED display that provides real-time information on system status and performance. This feature allows for easy monitoring and management of the solar power system.
- RS232/RS485 Communication Support: The XN5548-P supports RS232 and RS485 communication protocols, enabling seamless integration with other devices and systems for enhanced control and monitoring capabilities.
- Exquisite Design: With its sleek and robust design, the XN5548-P not only performs exceptionally well but also adds a touch of elegance to any installation.
- Rated Power 5500VA/55000W
Input　
- Voltage 230Vac
- Selectable Voltage Range 170Vac~280Vac (for personal computers)
- 90Vac~280Vac (for home appliances)
- Frequency Range 50Hz / 60Hz (auto sensing)
Output　
- AC Voltage Regulation (Batt. Mode) 230Vac±5%
- Surge Power 11000VA
- Overload Capability 5s@≥150% load; 10s@110%~150% load
- Efficiency (Peak) 94%
- Transfer Time 10ms (for personal computers); 20ms (for home appliances)
- Waveform Pure Sine Wave
Battery　
- Battery Nominal Voltage 48Vdc
- Floatingg Charge Voltage 52Vdc
- Overcharge Protection 62Vdc
Solar Charger & AC Charge　
- Solar Charger Type MPPT
- Maximum PV Array Power 6000W
- MPPT Range 120Vdc~450Vdc
- Maximum PV Array Open Circuit Voltage 500Vdc
- Maximum Utility Charge Current 80A
- Maximum Solar Charge Current 110A
Protection　
- Protection AC Short Circuit Protection, AC Over Current Protection, Over Temperature Protection, etc.
Communication
- Display LCD
- Communication Port RS232 / RS485
Standard Compliance　
General Data　
- Dimension (W x H x D) 472 x 297 x 133 mm
- Net Weight 10.5kg
- Protect Degree IP21
- Operating Temperature 0°C ~ +55°C
- Storage Temperature -15°C ~ +60°C
- Humidity 5%~95% (non-condensing)
- Parallel Up to 6pcs
NVT XN5548-P Single Phase Off-Grid Solar Inverter: The Ultimate Solution for Reliable Power Supply
In the realm of solar energy, the demand for efficient and reliable inverters has been steadily increasing. The INVT XN5548-P single-phase off-grid solar inverter stands out as an exceptional choice for various applications, particularly in areas with no power, nomadic regions, communication base stations, and more. This article delves into the key features and benefits of the XN5548-P, highlighting why it is a top-tier option for those seeking dependable off-grid solar solutions.
Versatile Applications of the XN5548-P
The INVT XN5548-P single-phase off-grid solar inverter is designed for a wide range of applications. It is ideal for non-power areas, nomadic regions, communication base stations, areas with power instability, islands, border posts, scenic area management offices, newspaper booths, and battery pack matching for battery manufacturers. This versatility ensures that the XN5548-P can meet the needs of diverse environments and requirements.
Efficient Energy Management
Higher Revenue with Built-in 110A MPPT Solar Charge
One of the standout features of the XN5548-P is its built-in 110A MPPT (Maximum Power Point Tracking) solar charge controller. This advanced technology optimizes the energy harvest from solar panels, ensuring that the inverter operates at maximum efficiency. By maximizing the power output, users can achieve higher revenue from their solar installations.
Wide PV Input Voltage Range
The XN5548-P supports a wide photovoltaic (PV) input voltage range, making it compatible with various solar panel configurations. This flexibility allows for efficient energy conversion and better adaptability to different solar setups, ensuring that the inverter can handle diverse installation scenarios.
Intelligent Operation and Maintenance
Comprehensive Protection Mechanisms
Safety and reliability are paramount when it comes to solar inverters. The XN5548-P is equipped with multiple protection mechanisms, including overload protection, over-temperature protection, and short circuit protection. These features ensure that the inverter operates safely and reliably, preventing damage to both the inverter and connected equipment.
Smart Battery Charger Design
The intelligent battery charger design of the XN5548-P optimizes battery performance and longevity. By adjusting the charging parameters based on the battery type and condition, the inverter ensures efficient and safe charging, extending the service life of the batteries. This feature is particularly beneficial for users who rely on battery storage for their energy needs.
Reliable and Worry-Free Performance
Support for Grid and Generator Input
The XN5548-P single-phase off-grid solar inverter supports grid and generator input, providing a stable power supply even when solar power is insufficient. This capability ensures continuous operation and reliability, especially in remote or off-grid locations where consistent power supply is crucial.
Compatibility with Lithium Batteries
Modern lithium batteries offer high energy density, long cycle life, and excellent performance. The XN5548-P is compatible with these advanced batteries, allowing users to take full advantage of the latest battery technologies for improved energy storage and management.
Scalable Parallel Operation
For larger installations requiring higher power output, the XN5548-P (P model) supports parallel operation of up to six units. This scalability ensures flexibility and expandability, making it suitable for both small and large-scale solar projects. Users can easily scale their systems to meet growing energy demands.
Multiple Charging Voltage Levels and Work Modes
The XN5548-P offers multiple charging voltage levels, accommodating different types of batteries and ensuring optimal charging for each type. Additionally, the inverter provides multiple work modes, including AC priority and solar priority, allowing users to customize its operation based on their specific energy needs and preferences.
User-Friendly Features
LED Display for Real-Time Monitoring
The XN5548-P is equipped with an LED display that provides real-time information on system status and performance. This user-friendly feature allows for easy monitoring and management of the solar power system, ensuring that users can keep track of their energy usage and system health.
RS232/RS485 Communication Support
Supporting RS232 and RS485 communication protocols, the XN5548-P enables seamless integration with other devices and systems. This enhances control and monitoring capabilities, allowing users to manage their solar installations more effectively.
Exquisite Design
In addition to its robust performance, the XN5548-P features an exquisite design that adds a touch of elegance to any installation. Its sleek and durable build ensures that it can withstand the rigors of various environments while maintaining an aesthetically pleasing appearance.
The INVT XN5548-P single-phase off-grid solar inverter is a versatile, efficient, and reliable solution for a wide range of off-grid applications. With its advanced features such as the built-in 110A MPPT solar charge controller, wide PV input voltage range, intelligent battery charger design, and support for parallel operation, the XN5548-P stands out as a premier choice for those seeking a dependable solar inverter. Whether you are in a remote area, managing a scenic spot, or setting up a communication base station, the XN5548-P provides the performance and reliability needed to ensure uninterrupted power supply.
